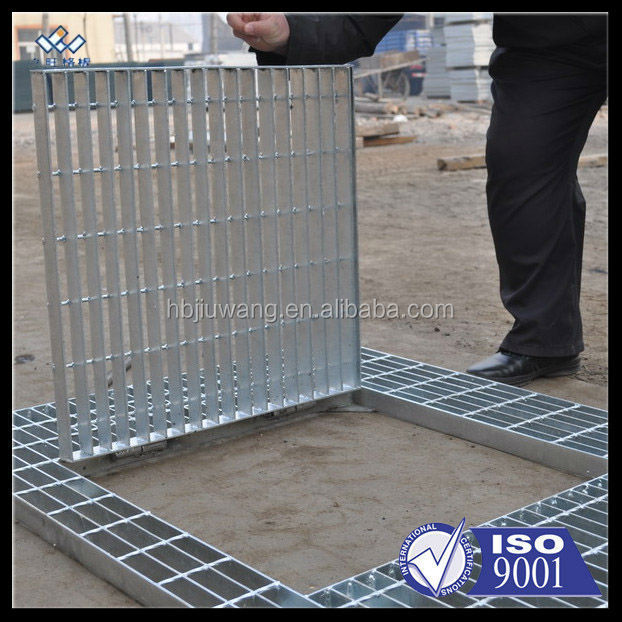

hot dip galvanized drainage channel grating
If you need customized products, Contact US !
Category
Tag list
- Product description
-
1.what is steel grating ?( channel drains ) -- Steel grating is made by bearing bar and cross bar according to the flat-steel weft arrangement, in high-pressure spacing on resistance welder welded by cutting, incision, opening, overlock process such as processing and into customer requirements finished products.
2.steel grating specification- channel drains
panel size available(black grating): 1000x5800mm or 1000x6000mm
Bearing bar pitch
Cross bar pitch
load steel size ( Width ×Thickness)
20×3
25×3
32×3
40×3
20×5
25×5
30
100
G203/30/100
G253/30/100
G323/30/100
G403/30/100
G205/30/100
G255/30/100
50
G203/30/50
G253/30/50
G323/30/50
G403/30/50
G205/30/50
G255/30/50
40
100
G203/40/100
G253/40/100
G323/40/100
G403/40/100
G205/40/100
G255/40/100
50
G203/40/50
G253/40/50
G323/40/50
G403/40/50
G205/40/50
G255/40/50
60
50
-
G253/60/50
G253/60/50
G403/60/50
G205/60/50
G255/60/50
Bearing bar pitch
Cross bar pitch
load steel size (Width ×Thickness)
32×5
40×5
45×5
50×5
55×5
60×5
30
100
G325/30/100
G405/30/100
G455/30/100
G505/30/100
G555/30/100
G605/30/100
50
G325/30/50
G405/30/50
G455/30/50
G505/30/50
G555/30/50
G605/30/50
40
100
G325/40/100
G405/40/100
G455/40/100
G505/40/100
G555/40/100
G605/40/100
50
G325/40/50
G405/40/50
G455/40/50
G505/40/50
G555/40/50
G605/40/50
60
50
G325/60/50
G405/60/50
G455/60/50
G505/60/50
G555/60/50
G605/60/50
3. Anping metal walking grates introduction-- galvanized forged grid drainage
Bearing bar type
Flat bar
I bar
Serrated bar
Cross bar type
Twisted bar
Round bar
flat bar
Production process
welded
Pressure locked
Surface treatment
Self-colour
Galvanized
painted
application
Platform
walkway&floor
Trench cover
Steel stair treads
Suspended ceiling
Barrier fence

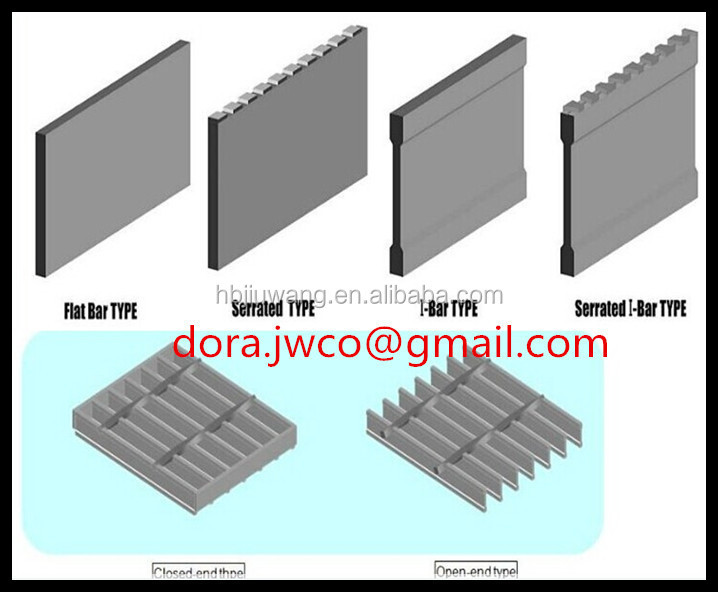

bearing bar types:

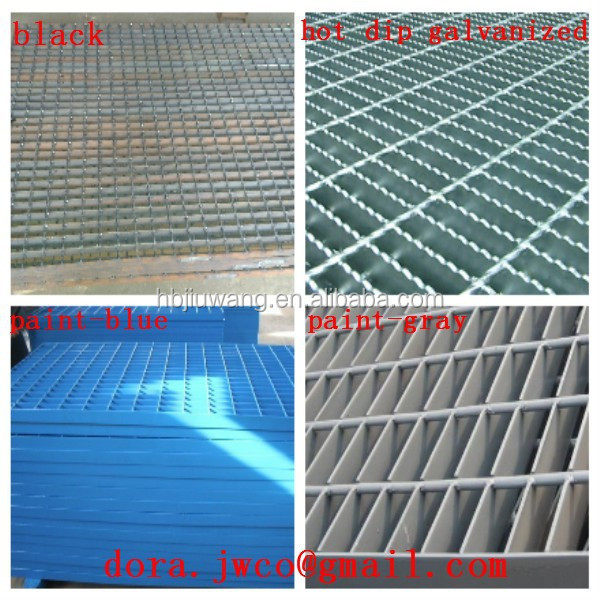

surface treatment: mill finish,hot dip galvanized,painted
4.steel grating standard-- car parking cover
Steel Grating Standard
Steel Grating Standard
Steel Standard
Galvanizing Standard
China Standard
YB/T 4001.1-2007
GB700-88
GB/T13912-2002
USA Standard
ANSI/NAAMM (MBG531)
ASTM (A36)
ASTM (A123)
U.K. Standard
BS4592
BS4360 (43A)
BS729
Australia Standard
AS1657
AS3679
AS1650
Deutsche Standard
DIN24537
DIN17100-80
DIN50976

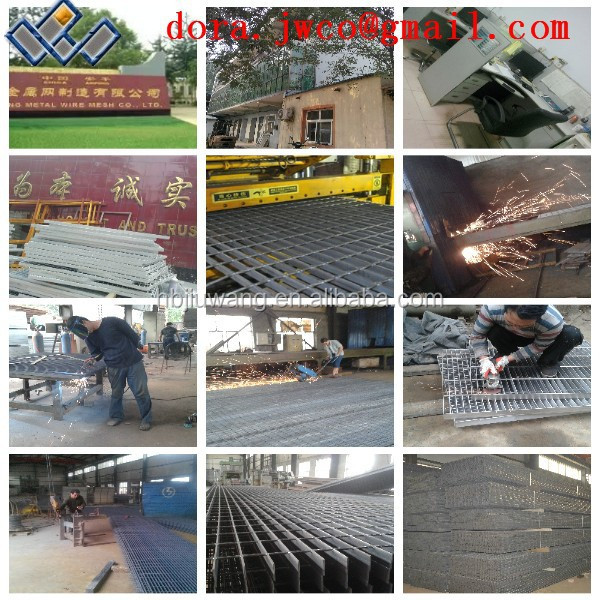

5 galvanized trench grating manufacturer process

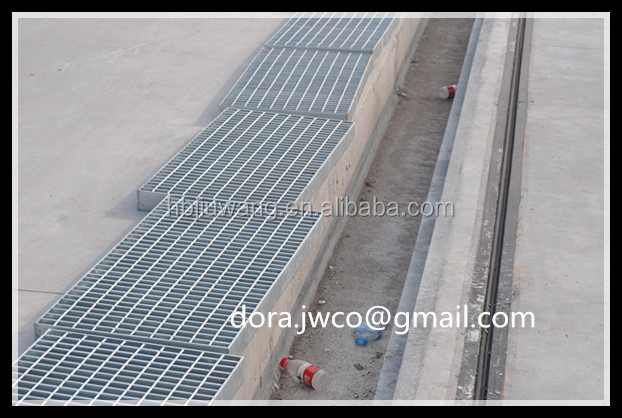

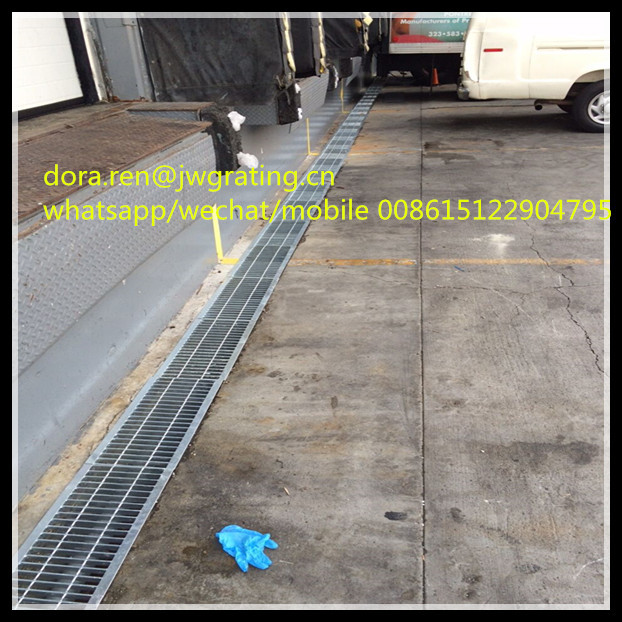

6 house water drainage system--steel grating application
GU trench cover grating
GT heavy duty drain grate grating
GM heavy duty drain grate grating
car parking STEEL GRATING FOR CAR PARK LINEAR DRAINAGE channel grating

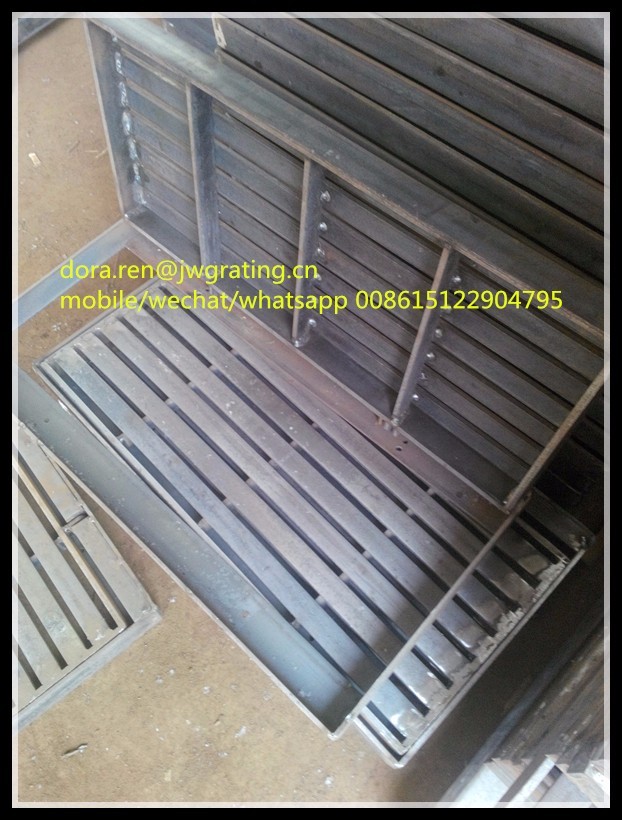

heavy duty drain grate WITH FRAME
trench cover grating
6.our company profile
Hebei Jiuwang Metal Wire Mesh Co.,Ltd.(original Anping County Jintai Metal Mesh Co.,Ltd.).Established in 1992,our company is a manufacturer of large steel structure and steel gratings,integrating development,production and distribution.The company register capital is 10,080,000 Yuan,and take an area of 34,680 square meters.In 2003,we have got the ISO9001:2000 certification by BQR.

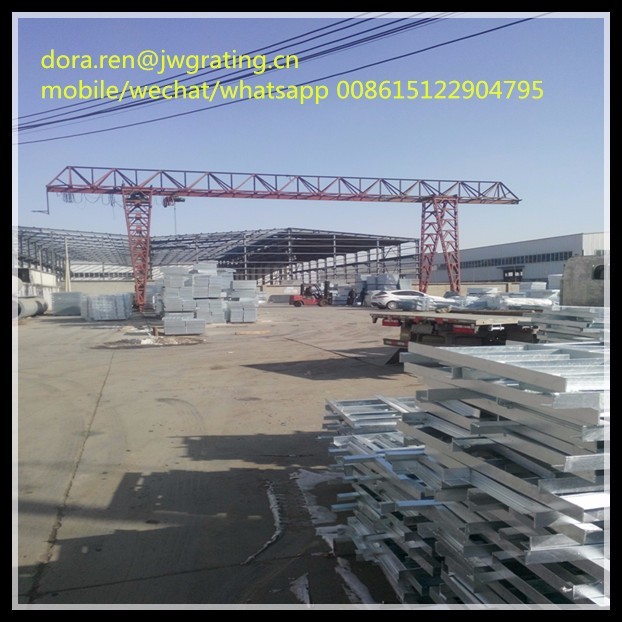

our hot dip galvanization factory department
Canton Fair show
7.CHOOSE US BECAUSE WE HAVE
1.Independent automatic steel grating product line with huge workshop and devices to ensure delivery time.
2. Over 20 years' experience in hot-dipped galvanized steel grating manufacture
3. Quality guarantee under the control of ISO9001 2000 quality system
4.Professional technology and design teams, chart as customers' requirements.
