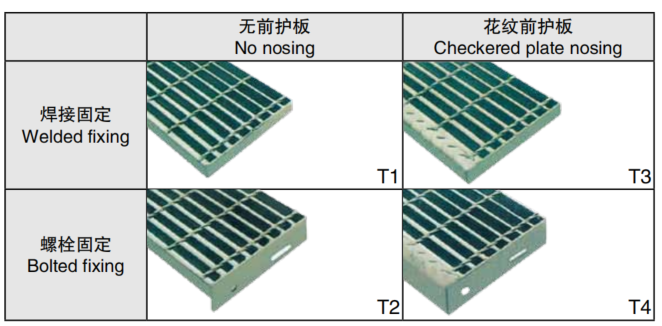

Our company produces steel ladders with guardrail, which are made of grating treads. When specifying the steel ladders, please refer to the national standard construction drawing 87J432. According to whether the nosings are to be used and the methods of mounting to stringers, stair treads are classified into four types: T1, T2, T3, T4.
T1 is stair tread without nosing and fixed by welding,
T2 is stair tread without nosing and fixed by bolts.
T3 is stair tread with nosing and fixed by welding.
T4 is stair tread with nosing and fixed by bolts.
The length and width can be made as customer’s need, then it can be adapted to different step ladder. We can also recommend sizes to customers.
Item Recommended stair treads width (mm) T1/T2/T3/T4
Bearing bar pitch at 30mm95 125 155 185 215 245 275 T1/T2
Bearing bar pitch at 40mm
T3/T4125 165 205 245 285 115 155 195 235 275 Fixing hole center(mm) 45 75 100 150 Item Recommended maximum stair treads length (mm) Bearing bar dimension mm 25*3 25*5 32*5 Bearing bar’s pitch at 30 mm 550 900 1300 Bearing bar’s pitch at 40 mm 450 750 1200
