- Product description
-
Using steel grating to make fence series products: durable, imposing, having a unique style, applicable to the garden fence, oil field park retaining, field storage building envelope, the ground divide, etc. After hot-dip galvanized processed ,the grating fence has the extremely good anticorrosion ability, solid and simple structure, easy to install.
Grating fence JWGL-003

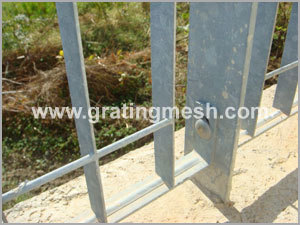

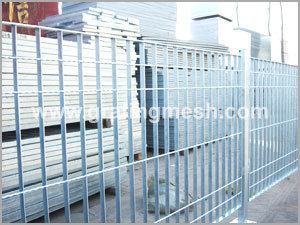

JWGL-003 -detailed picture JWGL-003 -detailed picture Specifications may according to the customer request to produce, can also choose the below sizes we recommend.
Code
Size(H*L）
Mesh size（cm)
Bearing bar
JWGL-001
1000*2500
6*10
25*3
JWGL-002
1500*2500
6*10
25*4
JWGL-003
2000*2500
6*10
25*5
JWHL-001
1100*2000
（10/10/30/30/10/10）*10
25*3
JWHL-002
1100*2200
（10/10/30/30/10/10）*10
25*3
JWHL-003
1100*2400
（10/10/30/30/10/10）*10
25*3
JWHL-004
1100*2500
（10/10/30/30/10/10）*10
25*3
JWHL-005
1100*3000
（10/10/30/30/10/10）*10
25*3
Fence installation method: usually by square tube 50mm * 50mm or flat steel 65mm * 5mm as the pillar, take embedded or using iron expansion bolts, etc way, according to the size of the fence post fixed in the need to install the fence on the ground, then install the steel grating fence to the post by bolts. Embedded type pillar need higher above 300 mm than the fence , and by expansion bolts installation need to weld the pillar to the install flange, flange generally uses 65mm * 5mm flat steel production. Complete the above products processing , then do the whole galvanized processing, the metal grating is protected by the Zinc layer, corrosion resistance is superstrong. According to different environment ,also can choose other surface treatments: spray paint and plastic coated(PVC), epoxy resin coating, brush asphalt etc. Shipped to the construction site can be directly installed , installation is convenient and quick.

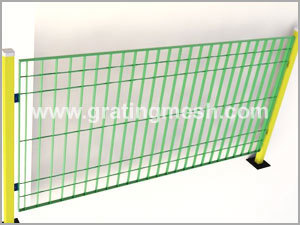

Grating fence JWHL-004 Grating fence JWHL-004 Other specifications style of the steel grating fence we also can processing production. Welcome your calls or emails to inquiry and place order. Our company has a professional design, production team, can provide the complete set of steel gratings fence order & design services.
